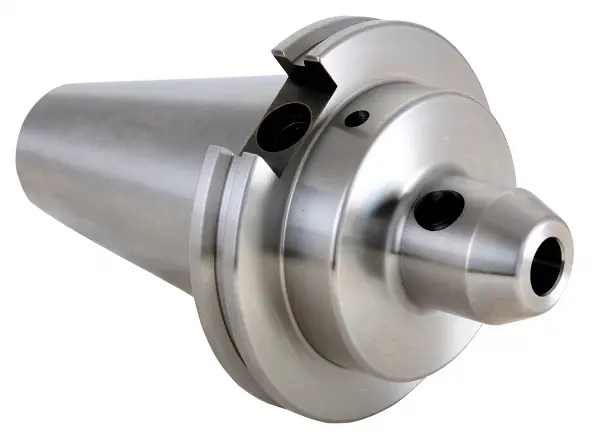

CAT50 (metric) – 6mm Bore I.D. - 4"

Part Number: 82822981
Manufacturers Name: Techniks, Inc.
Manufacturers Part #: 22981
$198.72
$198.72 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

CAT50 (metric) – 6mm Bore I.D. - 4" Techniks End Mill Holders are machined to H5 standard I.D. hole tolerance. Balanced to 15,000 RPM at G6.3 tolerance to save spindle bearing life. Taper is ground to AT3 standard. Lab certified with an individualized performance report.
Specifications
  • Nose Diameter (in): 0.984
  • Type: End Mill Holder
  • Nose Diameter (mm): N25
  • Taper Type: CAT50
  • Bore I.D. (in): 0.236
  • Bore I.D. (mm): N6
  • Material: 8620 Steel
  • Style: Single End
  • Gage Length (in): N4
  • Gage Length (mm): 101.6
  • Overall Length (in): N8
  • Overall Length (mm): 203.2
