Home › Tool Holding › Collets, Nuts and Reduction Sleeves › ER Collets › ER20 Collets (metric) – Shank Sizes: 6–7
Click image to enlarge

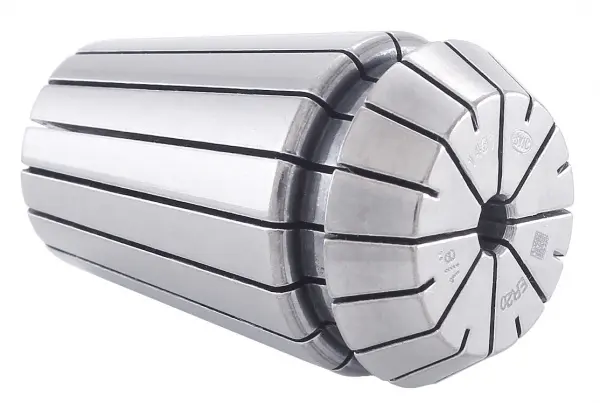

ER20 Collets (metric) – Shank Sizes: 6–7

Part Number: 82804220-07
Manufacturers Name: Techniks, Inc.
Manufacturers Part #: 04220-07
$20.40
$20.40 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

ER20 Collets (metric) – Shank Sizes: 6–7 Techniks Precision Collets have at most .0002" T.I.R. as a standard quality guarantee. Their clamping range is .039". For best results, use with a PowerCOAT Nut to improve holding power and extend tool life.
Specifications
  • Series: ER20
  • Capacity (in): 0.2756 - 0.2362
  • Capacity (mm): 7 - 6
  • Type2: Precision Spring Collet
  • Unit of Tool: Metric
  • Number of Pieces: N/A
  • Incremental Division: N/A
  • Style: Single Angle
  • Shank Size (in): 0.2756
  • Shank Size (mm): N7
  • Square Size (in): N/A
  • Square Size (mm): N/A
  • Tap Range (in): N/A
  • Tap Range (mm): N/A
  • Tap Size (in): N/A
  • Tap Size (mm): N/A
  • Overall Length (in): 1.24
  • Overall Length (mm): 31.5
