.078 D x 90 CARB MINI SPOT DRILL, AlTiN

Part Number: 33611478-C3
Manufacturers Name: Solid Carbide Spot Drills
Manufacturers Part #: 11478-C3
$32.90
$32.90 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

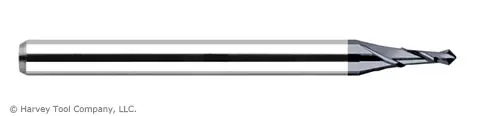

0.0780" (5/64) Drill DIA x 0.2340" (15/64) Flute Length Carbide , 90° Carbide Spot Drill, 2 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Drill
  • Metric Flag: 90
  • Flute Count: N2
  • Flute Length: 0.2340" (15/64)
  • Overall Length: 1.5000" (1-1/2)
  • Shank Diameter: 0.1250" (1/8)
  • Web Thickness: 0.0050"
  • Included Angle: 90
  • Angle Per Side: N45
  • Drill Diameter: 0.0780" (5/64)
