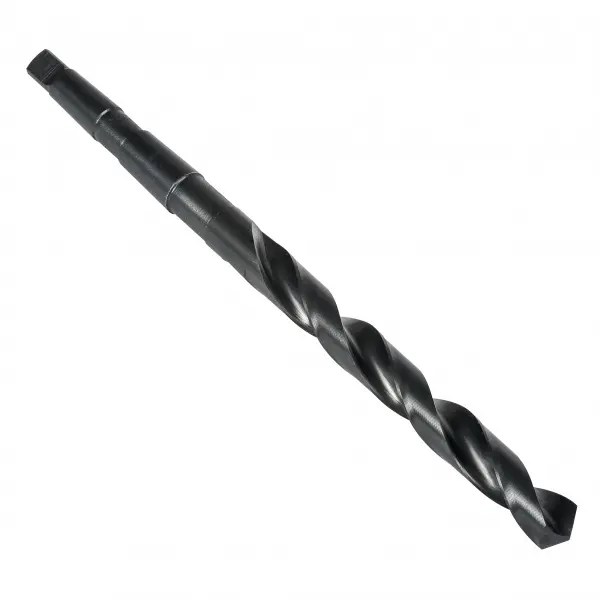

HSS Steam Oxide 118° Taper Shank Drill Jobber DIN 345 34.00 mm

Part Number: 6706001137
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 6001137
$248.00
$248.00 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Steam Oxide for increased wear resistance & lubricity
Features
  • Steam Oxide Coating
  • ^Morse Taper Shank Shank
  • ^118° Drill Point Angle
  • ^HSS (high speed steel) Material
  • ^Jobber Drill Length
  • ^Standard - RH End Shot
  • ^DIN 345 Drill Standard
Specifications
  • Drills Bit Size: 34.00 mm
  • Drills Bit Size (Decimal Inch): 1.3386
  • Drill Point Angle: 118
  • Body Material Code: High Speed Steel
  • Surface Treatment/Coating: Steam Tempered/Black
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Spiral Form: Standard Spiral
  • Overall Length: N/A
  • Flute Length (mm): 190 mm
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Possible usage
  • K - Cast iron: Possible usage
  • N - Non-ferrous metals: Possible usage
  • S - High-temperature alloys: Possible usage
  • Product Family Code: 5ATS
  • Shank Type: Morse Taper Shank
  • Shank Size: 4MT
  • Drilling Depth: Depth 4 x d
  • Drill Length: Jobber
  • Country of Origin: Brazil
