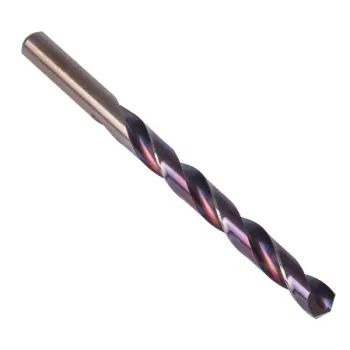

HSS Purple/Bronze HX 135° Jobber Drill Jobber ANSI N7

Part Number: 6705995539

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5995539

Minimum order: 12 EA

$3.29

$3.29 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering Split Point for easier penetration. Stronger and more Rigid. Unique surface treatment for improved wear resistance in hard ferrous alloys.

Features

ANSI Drill Standard
^HSS (high speed steel) Material
^Jobber Drill Length
^Straight Shank
^135° Drill Point Angle
^Split Point End Shot
^Purple/Bronze Coating

Specifications

Drills Bit Size: N7
Drills Bit Size (Decimal Inch): 0.201
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: Steam Tempered/Blue Bronze
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: 3.5/8
Flute Length (Inch): 2.7/16
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Priority usage
S - High-temperature alloys: Possible usage
Product Family Code: HX18
Shank Type: Cylindrical Shank
Drilling Depth: Depth 4 x d
Drill Length: Jobber
Country of Origin: Brazil
