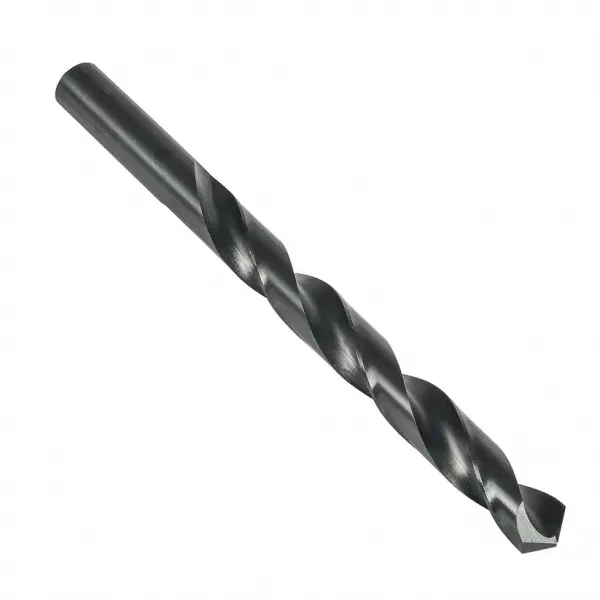

HSS Steam Oxide 135° NAS907B Jobber Drill Jobber NAS907 1/4 inch

Part Number: 6705997608

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5997608

Minimum order: 12 EA

$3.80

$3.80 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering Split Point for easier penetration. Steam Oxide surface treatment for increased wear resistance & lubricity. Recommended for tougher ferrous materials.

Features

Steam Oxide Coating
^HSS (high speed steel) Material
^Jobber Drill Length
^Straight Shank
^135° Drill Point Angle
^Split Point End Shot
^NAS907 Drill Standard

Specifications

Drills Bit Size: 1/4
Drills Bit Size (Decimal Inch): 0.25
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: Steam Tempered/Black
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: 4"
Flute Length (Inch): 2.3/4
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Priority usage
N - Non-ferrous metals: Possible usage
S - High-temperature alloys: Possible usage
Product Family Code: R10B
Shank Type: Cylindrical Shank
Drilling Depth: Depth 4 x d
Drill Length: Jobber
Country of Origin: Brazil

Technical Resources

Dormer Pramet Catalog
