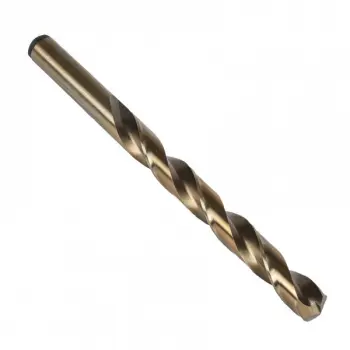

HSS-E Bronze 135° NAS907J Jobber Drill Jobber NAS907 21/32 inch

Part Number: 6705998152
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 5998152
$64.80
$64.80 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering Split Point for easier penetration. Cobalt base material with Bronze Oxide for wear resistance & lubricity. For enhanced tool life in ferrous materials
Features
  • Jobber Drill Length
  • ^Straight Shank
  • ^Bronze Coating
  • ^135° Drill Point Angle
  • ^HSS-E (cobalt high speed steel) Material
  • ^WARNING: Cancer - www.P65Warnings.ca.gov
  • ^Split Point End Shot
  • ^NAS907 Drill Standard
Specifications
  • Drill Bit Size: 21/32
  • Drill Bit Size Decimal: 0.6563
  • Drill Point Angle: 135
  • Body Material Code: Cobalt
  • Flute Length: 5.3/16
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Coating: Steam Tempered/Bronze
  • Overall Length: 7.1/8
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Priority usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Possible usage
  • S - High-temperature alloys: Priority usage
  • Product Family Code: R10CO
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 4 x d
  • Drill Length: Jobber
  • Country of Origin: Brazil
