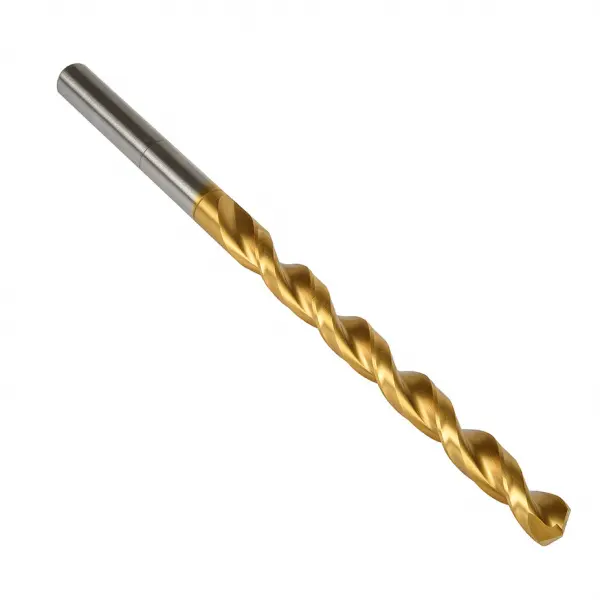

HSS TiN QC 135° Taper Length Drill Long ANSI 19/64 inch

Part Number: 6705996867

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5996867

Minimum order: 6 EA

$44.35

$44.35 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

TiN Coating increases wear resistance and improves tool life. Heavy-Duty Parabolic Flute design for efficient chipremoval. Allows greater drilling depths in one pass.Low thrust design self centering Split Point for easierpenetration.

Features

ANSI Drill Standard
^HSS (high speed steel) Material
^Straight Shank
^135° Drill Point Angle
^Long Drill Length
^PFX HSCo End Shot
^TiN Coating

Specifications

Drills Bit Size: 19/64
Drills Bit Size (Decimal Inch): 0.2969
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: TiN/Gold
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: 6.3/8
Flute Length (Inch): 4"
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Possible usage
N - Non-ferrous metals: Priority usage
Product Family Code: QC91G
Shank Type: Cylindrical Shank
Drilling Depth: Depth 6 x d
Drill Length: Long
Country of Origin: France
