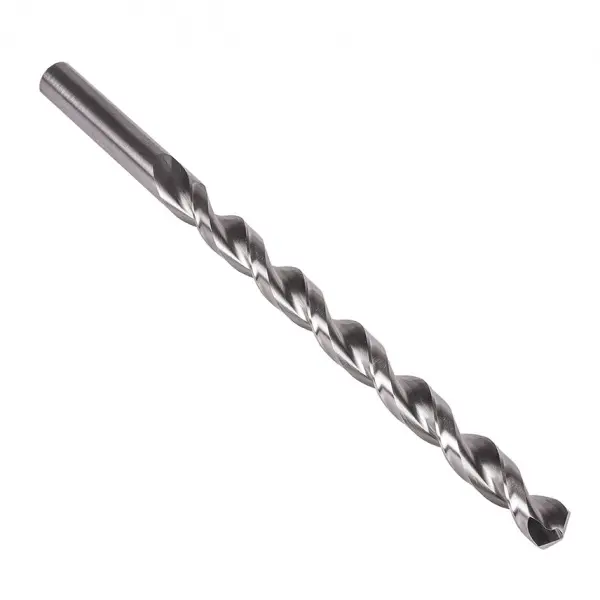

HSS Bright QC 135° Extra Length Drill Long ANSI 31/64 inch

Part Number: 6705995790

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5995790

$100.65

$100.65 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

Heavy-Duty Parabolic Flute design for efficient chip removal. Allows greater drilling depths in one pass. Low thrust design self centering Split Point for easier penetration. Bright Finish improves chip flow in soft or non-ferrous materials.

Features

ANSI Drill Standard
^HSS (high speed steel) Material
^Bright Coating
^Straight Shank
^135° Drill Point Angle
^Long Drill Length
^PFX HSCo End Shot

Specifications

Drills Bit Size: 31/64
Drills Bit Size (Decimal Inch): 0.4844
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: Original surface/Bright Silver
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: 8"
Flute Length (Inch): 6"
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Priority usage
N - Non-ferrous metals: Possible usage
Product Family Code: QC0860P
Shank Type: Cylindrical Shank
Drilling Depth: Depth 10 x d
Drill Length: Long
Country of Origin: France
